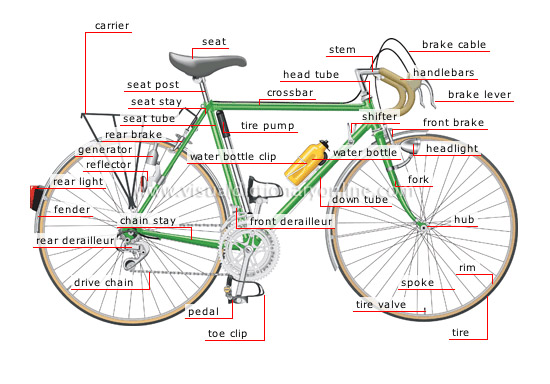

parts of a bicycle
toe clip
Metal device attached to the pedals that covers the front of the feet, keeping the feet in the proper position and increasing pedaling power.
pedal
Part attached to a crank that the cyclist rotates to provide the bicycle’s power.
front derailleur
Mechanism for changing the front gears by lifting the chain from one chain wheel to another; it allows the cyclist to adapt to road conditions.
drive chain
Set of metal links meshing with the sprockets on the chain wheel and gear wheel to transmit the pedaling motion to the rear wheel.
chain stay
Tube connecting the pedal mechanism to the rear-wheel hub.
rear derailleur
Mechanism for changing the rear gears by lifting the chain from one gear wheel to another; it allows the cyclist to adapt to road conditions.
reflector
Device returning light toward its source so that other users of the road might see the cyclist.
fender
Piece of curved metal covering part of the wheel to protect the cyclist from being splashed.
rear light
Lamp signaling the bicycle’s presence in the dark.
generator
Mechanism activated by the rear wheel, converting the wheel’s motion into electric energy to power the front and rear lights.
carrier
Device attached to the back of the bicycle for carrying bags on each side and packages on top.
rear brake
Mechanism activated by a brake cable, comprising a caliper and return springs; it forces a pair of brake pads against the sidewalls to stop the bicycle.
seat tube
Part of the frame leaning slightly to the rear, receiving the seat post and joining the pedal mechanism.
seat stay
Tube connecting the top of the seat tube with the rear-wheel hub.
seat post
Component supporting and attaching the seat, inserted to variable depth into the seat tube to adjust the seat’s height.
seat
Small triangular seat attached to the bicycle’s frame.
tire pump
Device that compresses air and is used to inflate a bicycle tire’s inner tube.
crossbar
Horizontal part of the frame, connecting the head tube with the seat tube and stabilizing the frame.
down tube
Part of the frame connecting the head tube to the pedal mechanism; it is the longest and thickest tube in the frame and gives it its rigidity.
water bottle clip
Support attached to the down tube or the seat tube for carrying the water bottle.
water bottle
Soft plastic container, with a quick-open cap, for drinking from.
tire valve
Small clack valve sealing the inflation opening of the inner tube; it allows air to enter but prevents it from escaping.
spoke
Thin metal spindle connecting the hub to the rim.
tire
Structure made of cotton and steel fibers coated with rubber, mounted on the rim to form the casing for the inner tube.
rim
Metal circle constituting the wheel’s circumference and on which the tire is mounted.
hub
Central part of the wheel from which spokes radiate. Inside the hub are ball bearings enabling it to rotate around its axle.
fork
Two tubes connected to the head tube and attached to each end of the front-wheel hub.
headlight
Lamp illuminating the ground a few yards in front of the bicycle.
front brake
Mechanism activated by a brake cable, comprising a caliper and return springs; it forces a pair of brake pads against the sidewalls to slow down the front wheel.
brake lever
Lever attached to the handlebars for activating the brake caliper via a cable.
head tube
Tube using ball bearings to transmit the steering movement to the fork.
stem
Part whose height is adjustable; it is inserted into the head tube and supports the handlebars.
handlebars
Device made up of two handles connected by a tube, for steering the bicycle.
brake cable
Sheathed steel cable transmitting the pressure exerted on the brake lever to the brake.
shifter
Lever for changing gears via a cable moving the derailleur.
